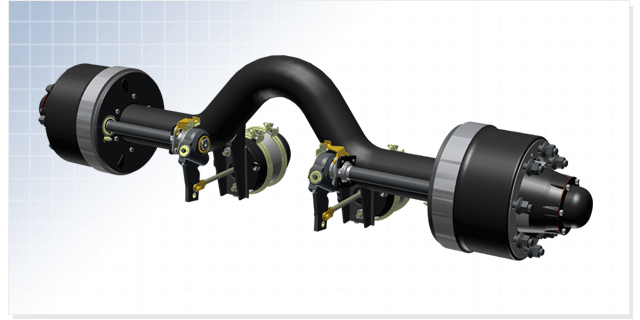

PRODUCT

PRODUCT NO.

A

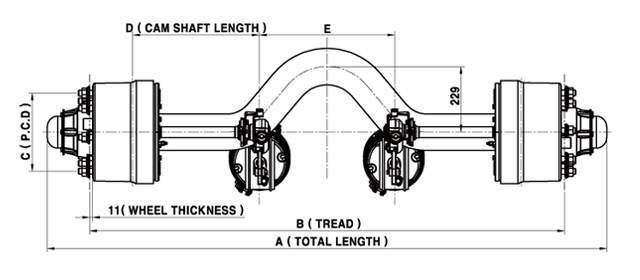

(mm)

B
(mm)

C
(mm)

D
(mm)

E
(mm)

BEARING

PIPE

*WEIGHT(kgf)

CAPA(ton)

ABS

P05H1-A0000

1953.6

1660

P.C.D 275
-8STUD

441

464

IN : HM218248/210

OUT : HM212049/011

127x16t

274

5

옵션

P05D1-A0000

2053.6

1760

441

564

280

*P05H2-A0000

1953.6

1660

488

370

276

*P05D2-A0000

2053.6

1760

538

370

282

*P05H3-A0000

1953.6

1660

594.5

370

276

*P05D3-A0000

2053.6

1760

644.5

370

282

 * REMARK


• (P05H2~P05D3)-A0000 : CHAMBER BRACKET 상방향 제품.


• WEIGHT : AIR-CHAMBER 및 SLACK-ADJUSTER를 제외한 중량.


• C(P.C.D) 제외한 DIMENSION(A,B,D,E) 사양 협의 가능.

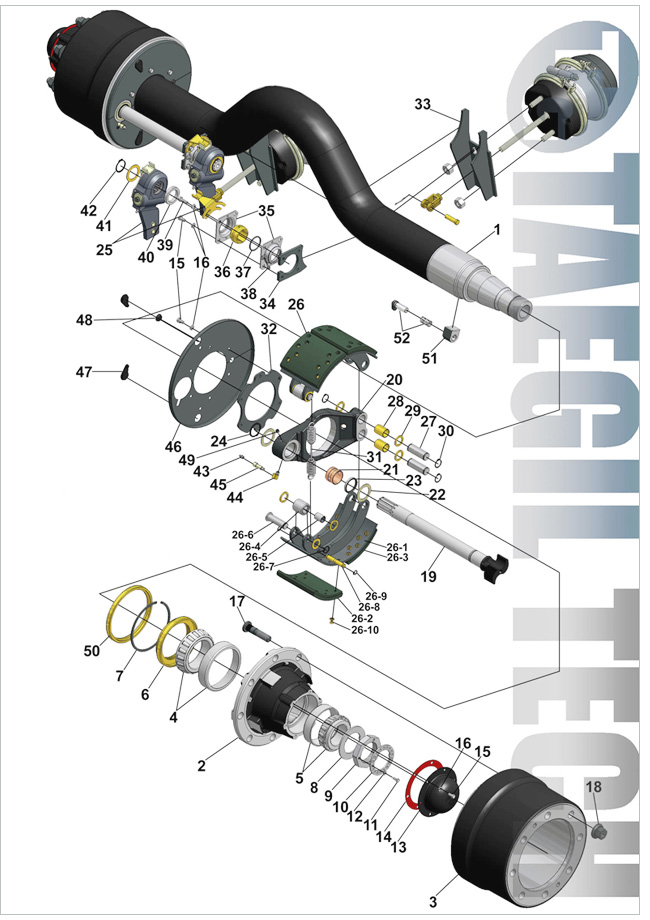

NO

PART NAME

PART NO.

Q'TY

REMARKS
1

  AXLE SHAFT

  P0510-A0010

 1
2

  HUB

  P0510-00020

 2

  PCD275-8HOLE
3

  BRAKE DRUM

  P0510-00030

 2

  PCD275-8HOLE
4

  INNER BEARING

   2
5

  OUTER BEARING

   2
6

  OIL SEAL

  TS010-00120

 2
7

  SNAP RING

  TS010-00130

 2
8

  KEY WASHER

  TS010-00150

 2
9

  SPINDLE NUT

  TS010-00160

 2
10

  LOCK WASHER

  TS010-00170

 2
11

  BOLT

   6
12

  S/P WASHER

   6
13

  HUB CAP

  TS010-00180

 2
14

  GASKET

  TS010-00140

 2
15

  BOLT

   28
16

  S/P WASHER

   32
17

  HUB BOLT

  P0510-00040

 16
18

  HUB NUT

  P0510-00050

 16
19

  CAM SHAFT L/R

  P0510-00060/00061

LH:1/RH:1


20

  SPIDER

  P0510-00070

2


21

  BUSH-SPIDER

  CT050-00060

 2
22

  PLATE WASHER

  11048-00380

 6
23

  OIL SEAL-SPIDER

  11048-00310

 4
24

  SNAP RING

  11048-00370

 4
25

  AUTO SLACK SET




26

  BRAKE SHOE ASS'Y

  P0510-A0090

 4
27

  ANCHOR PIN

  P0510-00100

 4
28

  BUSH-ANCHOR

   4
29

  SPACER

  P0510-00170

 8
30

  SNAP RING



 8
31

  RETURN SPRING

  13020-00150

 2
32

  FLANGE-DUST COVER

  P0510-00110

 2
33

  CHAMBER BRK'T

  P0510-00120/00121

 2
34

  CAM SHAFT BRK'T

  CL010-00070

 2
35

  BALL BUSH COVER L/R

  TS010-00280/00281

LH:1/RH:1


36

  BALL BUSH

  11080-00300

 2
37

  O-RING



 4
38

  GREASE NIPPLE



2


39

  BOLT



 4
40

  SPACER

  11048-00360

2


41

  PLATE WASHER

  CT050-00150

 2
42

  SNAP RING

   2
43

  GREASE NIPPLE



 2
44

  ADAPTER-GREASE NIPPLE



 2
45

  EXTENSION-NIPPLE

  11048-00320

2


46

  DUST COVER

  P0510-00160

2SET


47

  CAP-DUST COVER

  11047-00401

 2
48

  PACKING-SENSOR CABLE



 2
49

  FLUG



1


50

  SENSOR RING

  TS010-00200

2


51

  SENSOR BRK‘T

  P0510-00150

 2
52

  SENSOR & SENSOR BUSH



2SET



 * REMARK


• 본 LIST는 PRODUCT NO. T05H1-A0000의 LIST이며 제품에 따라 고유의 PART NO.를 갖는 부품이


   있을 수 있음.
